596400 PCS/H Capacity High Speed Rotary Tablet Press with Automatic PLC and 24 Hour Online Service

Gambar besar : 596400 PCS/H Capacity High Speed Rotary Tablet Press with Automatic PLC and 24 Hour Online Service

Detail produk:

Sertifikasi:	CE, GMP, ISO, EAC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	70000

Kontak

Detil Deskripsi produk

Model No.:	GZPK-71	Max Pra-Tekanan:	20kn
Kedalaman pengisian maksimal:	11mm	Kapasitas produksi maksimal:	596400 PCS/H.
Tekanan utama Max:	100kn	Standar perkakas:	BBS
Kekuatan:	11kw	Jenis putar:	Tekan putar ganda
Jumlah stasiun:	45	Diameter tablet maks:	25mm
Ketebalan tablet maks:	8mm	Kecepatan Max Turret:	70 r/mnt
Ukuran keseluruhan:	153012501900mm	Berat mesin:	4300kg

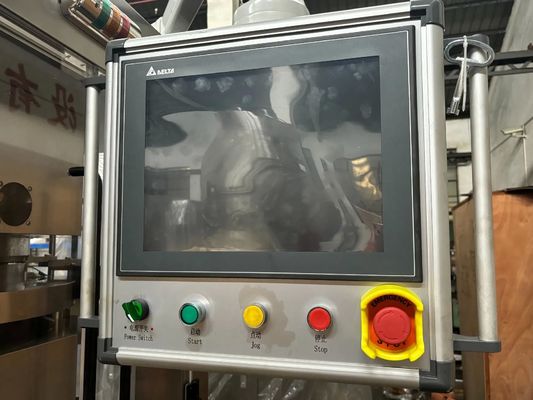

Metode adjuster:	PLC Otomatis dan Layar Sentuh
Menyoroti:	596400 PCS/H Capacity Rotary Tablet Press , Automatic PLC Pill Making Machine , 24 Hour Online Service Pharmaceutical Machinery

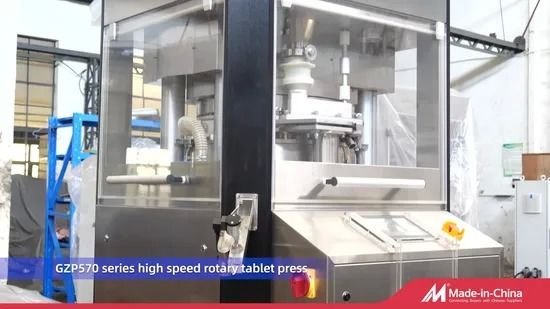

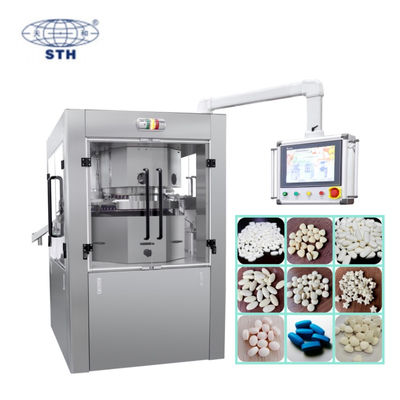

GZPK-45 High Speed Rotary Tablet Press Machine

Application

This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.

Key Features

Double press rollers and output sides for high-volume production
GMP-compliant stainless steel construction with hardened turret surface
Advanced press system with equal-sized main and pre-press rollers for superior tablet quality

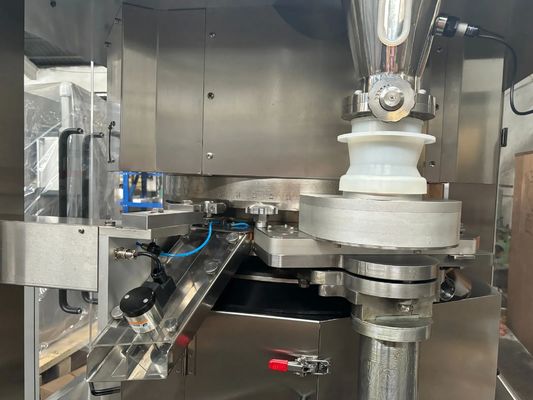

Double impellers force feeder for precise granular filling
Double-side lifting tooling track for balanced punch operation
User-friendly design with simple operation and maintenance
Reliable electric control system with production monitoring
Automatic central lubrication system for extended machine life
Specialized oil, dust, and noise protection design

Technical Specifications

Model	GZP(K)-45
Number of Station	45
Tooling Standard	D
Max Main Pressure (KN)	100
Max Pre-pressure (KN)	20
Max Tablet Diameter (mm)	25 (Round/Irregular)
Max Filling Depth (mm)	20
Max Tablet Thickness (mm)	8
Max Turret Speed (r/min)	70
Max Production Capacity (pcs/h)	378,000
Motor Power (KW)	11
Overall Size (mm)	1530×1250×1900
Machine Weight (kg)	4300

Product Gallery

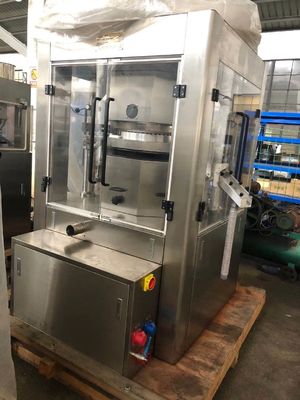

Packaging & Shipping

Export-standard wooden packaging included
Standard delivery time: 15-45 working days

Punches & Dies

Customizable punches and dies (round, irregular, concave, bevel-edged, etc.)
TSM-Tooling standard compliant
Material options: S7/D2, DC53, 6CrW2Si, etc.

Tablet Samples

After Sales Service

Installation services available with new machine purchases
On-site engineer support for setup and operation
1-year warranty with 24-hour technical support
Lifetime technical assistance for machine operation

Frequently Asked Questions

Where is your factory located?

Our factory is in Shanghai, Chongming District. We welcome visits by appointment.

How can I verify the machine suits my product?

Send us samples for testing - we'll provide videos and detailed reports of the results.

What payment and trust options are available?

We recommend using Trade Assurance Service for secure transactions and guaranteed service.

What's included in the warranty?

1-year warranty with 24-hour technical support response and lifetime assistance.

Company Profile

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We specialize in customized solutions with advanced technology, strict quality control, and comprehensive service.
