High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

Semua produk
Mesin Press otomatis Tablet (74)
kecepatan tinggi tekan tablet (46)
mesin press Rotary tablet (64)
Mesin Press Tablet Lab (24)
Tablet kompresi mesin (30)
Mesin Press Bubuk (27)
mesin press pukulan satu tablet (22)
Tablet Press Tooling (15)
Peralatan Bantu Farmasi (61)
Peralatan pengolahan farmasi (28)
Tablet coating Mesin (14)
Mesin Pengisi Kapsul (33)
Mesin Blister Packing (26)
Mesin Hitung Dan Isi Tablet (20)
otomatis mesin pengepakan mesin (8)
Mesin Enkripsi Softgel (8)
Mesin Pengisian Tabung Mengisi (7)
Mesin Pengemas Farmasi (14)
Produk terbaik
Bubuk 25mm D Tooling Rotary Tablet Membuat Mesin Untuk Farmasi

Bubuk 25mm D Tooling Rotary Tablet Membuat Mesin Untuk Farmasi

Sertifikasi
Cina Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Sertifikasi
Cina Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Sertifikasi
Produk STH memiliki kinerja yang sangat baik dan lingkungan tempat kerja puas.

—— Miss Pattraporn Hiti, Davao, Filipina

Mereka memberikan layanan sempurna, karakter kerja produk bertemu.

—— Alina, California, AS

I 'm Online Chat Now

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

Cina High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power pemasok

Gambar besar :  High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power

Detail produk:

Sertifikasi: CE, GMP, ISO, EAC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1
Harga: 60000
Kontak
Detil Deskripsi produk
Model No.: GZP570 (65) Bahan mesin: Baja karbon, baja tahan karat
Stasiun nomor: 65 Tekanan utama Max: 100kn
Max Pra-Tekanan: 40kn Kapasitas produksi maksimal: 468000 PC/H.
Daya motor: 11 kw Diameter tablet maks: Tablet bundar: 11mm, tablet tidak beraturan: 13mm
Kedalaman pengisian maksimal: 15mm Ketebalan tablet maks: 6mm
Kecepatan Max Turret: 60 r/menit Ukuran keseluruhan: 1420*1200*1850 mm
Berat mesin: 3500 kg Bahan menara: HT300 & 2CR13
Motor utama: 11kw (ABB)
Menyoroti:

65 Stations Rotary Tablet Press

,

40kN Pre-Pressure High Speed Tablet Press

,

11kW Motor Power Pharmaceutical Tablet Press

Fully Automatic Lubrication System High Speed Tablet Press with Force Feeder
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 0
Product Overview

The GZP570-65 High Speed Rotary Tablet Press Machine is a double-side rotary tablet press designed to press granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.

Key Features
  • Advanced pressure system with double pressure forming (main pressure and pre-pressure) for precise tablet weight and hardness control
  • High-speed turret operation with maximum output of 450,000 tablets per hour
  • Precision pressure monitoring system with emergency stop protection
  • Automatic lubrication system for reduced noise and extended component life
  • Programmable controller with color touch screen interface for intuitive operation
  • Comprehensive safety protection functions including pressure overload and door interlock
  • Stable forced feeding device with double impeller feeding plate for consistent material flow
  • High-strength frame structure with 100KN main pressure capacity
  • Premium material construction including military-grade copper track and Japanese-cast components
  • Precision machining of critical components for optimal performance
  • High-precision worm gear box for smooth, quiet operation
  • Special lubricating oil chamber for reduced wear on punch rods
Technical Specifications
Model GZP-65
Number Stations 65
Tooling Standard BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round Tablet: 11 | Irregular Tablet: 13
Max Filling Depth (mm) 15
Max Tablet Thickness (mm) 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 468,000
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
System Components
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 1
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, output counter
  • 3-level management authority
  • Electronic signature CFR21 compliant
  • Remote access capability
  • Single value pressure display
  • Formula management system
  • Handwheel-free operation with intuitive interface
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 2
Electrical System

Utilizes international brand components including Delta and Schneider for reliable performance.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 3

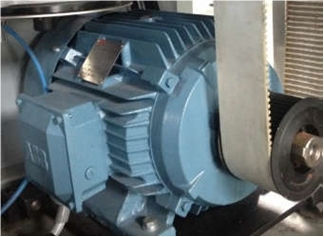

Main Motor
  • Powerful 11kw ABB motor
  • High-precision reducer for stable torque output
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 4
Automatic Lubrication System

Dual lubrication system with oil for punches and tracks, and grease for shafts and bearings.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 5
Turret Structure
  • Three-part structure design
  • HT300 & 2Cr13 materials with hardened surface layer
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 6
Force Feeder System

Directly mounted on main body for stability, featuring double blade wheel feeding disc for strong material adaptability and consistent powder filling.

High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 7
Force Feeder Hopper

Special hopper design with rotary valve for precise powder flow control.

Packaging & Shipping
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 8
  • Export-standard wooden packaging included
  • Delivery within 15-45 working days
  • Multiple shipping options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services available with all new machine purchases
  • On-site engineer support for setup and operation
  • Comprehensive technical support and training
Certifications
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 9
Company Profile
High Speed Rotary Tablet Press with 65 Stations 40kN Pre-Pressure and 11kW Motor Power 10

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience, exporting to more than 70 countries.

As a high-technology enterprise, we handle all processes from casting to metal machining and final assembly. We are committed to quality control and customer satisfaction, offering customized solutions based on detailed requirements analysis.
