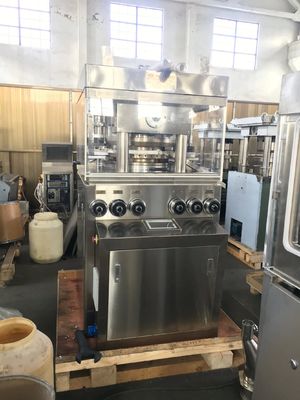

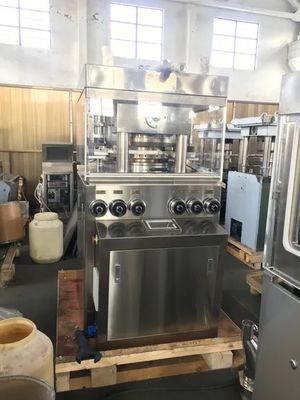

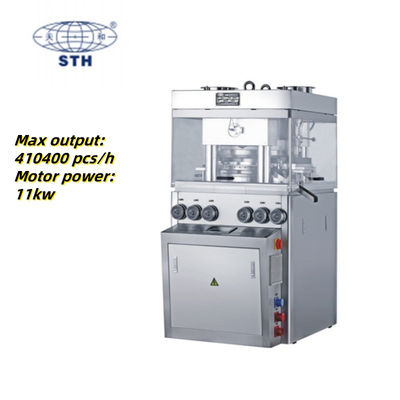

High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System

Cina High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System pemasok

Gambar besar :  High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System

Detail produk:

Sertifikasi: CE, GMP, ISO, EAC

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1
Harga: 30000
Kontak
Detil Deskripsi produk
Model No.: GZP-57 Bahan mesin: Baja karbon, baja tahan karat
Standar perkakas: BBS Stasiun nomor: 57
Tekanan utama Max: 100 kN Max Pra-Tekanan: 20 kN
Kapasitas produksi maksimal: 410400 PCS/H. Daya motor: 11 kw
Diameter tablet maks: Tablet bundar: 11 mm, tablet tidak teratur: 13 mm Kedalaman pengisian maksimal: 15 mm
Ketebalan tablet maks: 6 mm Kecepatan Max Turret: 60 r/menit
Ukuran keseluruhan: 1370*1170*1800 mm Berat mesin: 3200 kg
Sistem Kontrol: Plc dan layar sentuh
Menyoroti:

57 Stations Rotary Tablet Press

,

410400 PCS/H Capacity Tablet Press

,

Automatic Lubrication Tablet Press

GZP-57 High Speed Rotary Tablet Press Machine
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 0 High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 1
Application

This double-sided press type rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Designed for pharmaceutical, chemical, food, and electronic industries, it meets GMP requirements.

Key Features
  • Double press rollers and double-sided output for high-volume production

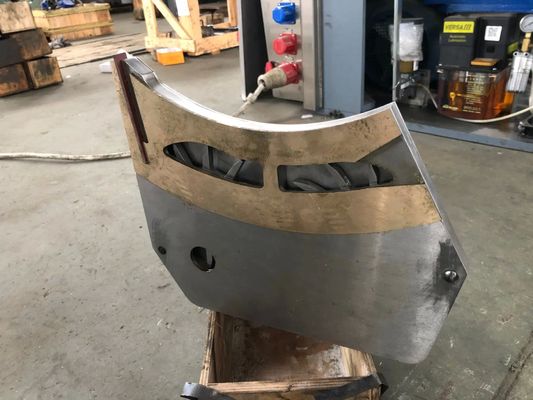

  • Double impeller force feeder improves granule flow and filling precision
  • Adjustable pre-pressure system extends pressing time
  • Automatic central lubrication system prolongs machine life
  • Pressure protection sensors prevent punch damage
  • PLC and touch screen control for easy operation
  • Configurable for double-layer tablet production
Technical Specifications
Model GZP-57
Number of Stations 57
Tooling Standard BBS
Max Main Pressure (KN) 100
Max Tablet Diameter (mm) Round: 11 | Irregular: 13
Max Production Capacity (pcs/h) 410,400
Motor Power (kw) 7.5
Dimensions (mm) 1370×1170×1800
Weight (kg) 3200

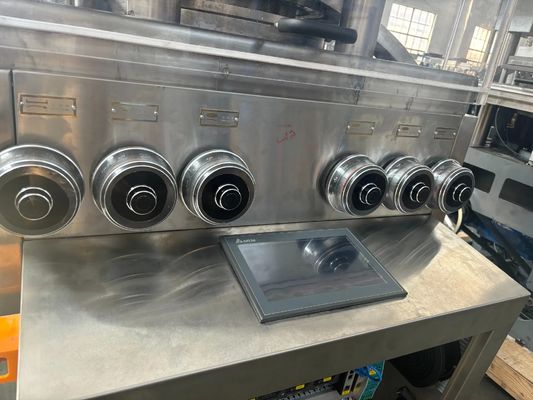

Control System Features
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 2
  • 10-inch Delta color touch screen with multi-language support
  • Real-time monitoring of pressure, speed, and production count
  • 3-level management authority
  • Electronic signature CFR21 (optional)
  • Remote access capability
Machine Components
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 3
Electrical System
  • Premium Chinese components (Delta, Delixi)
  • Optimized tableting system with double compression
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 4
Turret Construction
  • Three-part combined structure
  • HT300 & 2Cr13 materials with hardened surface
  • Stainless steel housing with wear-resistant coating
Packaging & Shipping
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 5
  • Export-standard wooden packaging included
  • 15-45 working days delivery time
  • Multiple shipping options: SEA, AIR, EXPRESS
Frequently Asked Questions
Q: Where is your factory located?

A: Our factory is in Shanghai's Chongming District. We welcome visits by appointment.

Q: How can I verify the machine suits my product?

A: Send samples for testing - we'll provide videos and online demonstrations.

Q: What after-sales support do you provide?

A: 1-year warranty with 24-hour technical support and lifetime assistance.

Tablet Samples & Moulds
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 6 High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 7 High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 8
Company Profile
High Speed Rotary Tablet Press with 57 Stations 410400 PCS/H Capacity and Automatic Lubrication System 9

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience in pharmaceutical processing equipment. We export to 70+ countries and offer complete vertical integration from casting to final assembly.

Our machines feature:

  • Custom solutions based on customer URS analysis
  • Advanced PLC control systems
  • GMP-compliant designs
  • Comprehensive after-sales support
